Slipstick® Sanitary Horizontal Motion Conveyor
The Slipstick Sanitary Conveyor, the first horizontal motion conveyor, is the food industry standard, recognized for its gentle, non-impact conveying motion and enviable record of low maintenance, high reliability and performance. Maintaining food safety and quality is the primary benefit of using the Slipstick in food processing applications. Unlike conventional vibrating conveyors that use a vertical pitching motion to propel material with repeated impacts which can cause the food to break or stick, the Slipstick’s single-drive mechanism provides a unique motion that glides the product down the pan, eliminating breakage problems for fragile foods such as chips, cookies, or cereal.
Flash-forward forty years, the Slipstick Conveyor is at work in almost every industry around the globe. If “imitation is the sincerest form of flattery” (and as we say in Texas, “it ain’t bragging if you can back it up”), every other horizontal motion conveyor on the planet today is an “adapted” version of the Slipstick. All of our direct competitors in food processing have dabbled at including some type of horizontal motion conveyor in their portfolio – some have succeeded, some have failed. And the Slipstick just keeps gliding along.
Form and Function
The key to horizontal motion conveying is the action of the conveyor upon the inertia of the conveyed materials. During the slow advance of the conveyor’s cycle, material is at a relative rest on the conveying surface. The quick return segment of the cycle gently slides the conveying surface under the material bed. Repeating this cycle 200 – 300 times per minute serves to smoothly convey the material up to forty feet per minute along the length of the conveying surface. Benefits of this motion include:
- Discourages build-up of materials on the surface
- Typically scours the pan clean so there’s less time required between production cycles for cleaning
- Exterior surfaces of the conveyor can be easily accessed for wipe down cleaning
- Cleaning under the conveyor is easier because typically there are no support frames or springs
- Mechanical simplicity over screws or drag conveyors.
- Requires significantly less maintenance.
- Safer conveying with no chains, screws, sprockets, rollers, idlers, or other moving parts located outside of the sealed and guarded drive unit
Based on its unique design that features a self-contained drive unit that has no outbound moving parts, the horizontal motion conveyor is virtually maintenance-free. Compared to conventional vibrating conveyors, powered by springs and convey material through impact on the conveyed material, the horizontal motion conveyor provides gentle transportation. And based on its relatively slow rotational speed, a typical drive unit will usually deliver more than ten years of life between service intervals, with only periodic lubrication required. Finally, since these conveyors utilize no springs or counterweights, they do not require the periodic tuning that is part of an ongoing maintenance program for conventional vibrating systems.
For materials that require transportation without compaction or segregation, the horizontal motion conveyor provides an ideal system. The “en masse” conveying method provided by the horizontal motion assures that mixtures will be delivered as originally blended, and fine particles will remain evenly distributed throughout the entire product bed – meaning retention of seasonings, coatings and breadings; prevention of oily fines build-up; and elimination of food product segregation.
Built in lengths from 4 ft. to more than 200 ft., the Slipstick offers a variable rate of product delivery depending upon the application, and is adjustable to suit most any requirement. Base mounted on the floor or suspended overhead, horizontal motion conveyors provide the level of versatility required for difficult installation applications. Conveyor drives may be positioned at either end of the conveyor, or mounted above or below. In addition, these conveyors can be operated at variable speeds, and their conveying direction is reversible. Conveying surfaces may be carbon, stainless, or abrasion resistant steel, as well as polyethylene plastic, or titanium.
The Slipstick can be suspended from overhead to maximize the use of valuable floor space or built with floor-mounted pedestals. Because it is dynamically self-balancing, no counterweights or heavy isolation bases are necessary. The drive module is mounted at either end or above or below the conveyor’s pan section.
Pan options for the Slipstick include multiple channels, pneumatically actuated discharge gates, and removable covers. Sealed tube sections provide added product protection and allow for CIP. The Slipstick can also be configured to align, singulate, divide, dry, or cool product as it flows through the conveyor.
The Slipstick is a clear choice for in-line storage of many products. The one-piece seamless conveyor pan eliminates cracks, crevices and moving parts in the product stream. No carry-over from seasonings, coatings or powder residue to add to normal plant house-keeping tasks. This feature offers quick and thorough clean-out for enhanced sanitation and a greatly reduced risk of any cross contamination between product runs.
The gentle horizontal motion of the conveyor is uniquely suited for the storage and discharge of the most fragile products. There is no product stratification and it can be a sealed system if required, as well as controlled discharge or retention times of the stored product. By reducing the speed of the conveyor, the slower product travel rate will allow the product bed depth to build up within the conveyor trough. Accumulator product depth can be further increased by the use of stationary product dams positioned along the length of the conveyor behind. The gentle horizontal motion of the Slipstick Accumulator allows the product to build depth behind a pneumatically controlled stationary product dam without product damaging impact against the dam.
Product storage can be accomplished with the Accumulator style storage (greater product depths for shorter storage areas) with metered discharge options, long shallower bed depth conveyors that are regulated with conveyor speeds and the Slipstick loop system that consist of 2 conveyors in a parallel, circular product loop where product is bled off using singular or multiple gating options.
- Slipstick Accumulators can be equipped with pneumatically actuated product dams and level sensors to meter product to downstream equipment.
- Slipstick accumulating conveyors have been provided with storage capacities from as little as 20 cubic feet to over 1000 cubic feet. Capacities beyond these volumes are possible with the Slipstick Accumulator.
The system may be monitored by level sensors positioned above the product bed that can activate product dam position or to vary the speed of the conveyor for bed depth and discharge rate control. Another approach is the use of a distribution Slipstick conveyor mounted above the length of the accumulator equipped with closely spaced discharged gates that are actuated by level sensors positioned along the length of the conveyor. These are positioned to build product depth with a gentle product-on-product drop in order to build the maximum bed depth for large storage capacity requirements.
Gates and Covers
The Triple/S Eco-Slide Gate was developed when a major food processor approached Triple/S Dynamics with the problem of cleaning and maintaining the existing gates on their conveyors. They wanted the ability of the removal of the gate to be tool-less, less time for disassembly and reassembly during the sanitation process between plant production cycles. The Triple/S design team went to work to develop a new low cost gate system to meet the customer’s requirements.
It took just one day to retrofit the new gates into the existing conveyors. Tool-less and easily removable for sanitation affording the customer less downtime, this new gate is a great example of why collaborating with the customer’s needs works.
Easy Clean Slide Gate
The Easy Clean Slide Gate offers food processors fast, thorough cleaning of all critical gate areas. Sanitation is improved with no fasteners in the food stream, as is performance and reliability of the gate. For cleaning access, toggle clamps on each side of the gate assembly are released which allow the stainless steel retaining frame to pivot away from the conveyor pan. The UHMW gate plate is then free to drop away from the pan, allowing easy access to all of the contacting surfaces. The Easy Clean slide gate assembly is available in single or multi-channel arrangements and can also be retrofitted to existing conveyor pans.
Proportioning Slide Gate
The Proportioning Slide Gate is designed to reliably discharge from 0-100% of the product stream through a given gate opening. The gate is actuated by a rod lock air cylinder to position the UHMW gate plate at up to 7 pre-set opening positions. The opening positions are field adjustable. The Proportioning Slide Gate is provided in either Easy Clean or ECO configurations for single or multi-channel arrangements.
The Pivot Gate offers maximum sealing security for minimal dust leakage without the use of an elastomeric seal in the product stream. The Pivot Gate uses spring loaded UHMW seals to press against the edges of a stainless steel gate plug that is flush fit in an opening in the conveyor pan bottom. The contact between the gate plug and the seal is a shear contact which wipes the contacting surfaces clean with each gate closing and prevents material buildup.
The Plug Gate is designed to meet 3A Dairy Standards for maximum sanitation and protection of the product stream from contamination and features all welded stainless steel construction with no fasteners in the product stream. The Plug Gate is designed for quick disassembly for ease of cleaning and can be equipped with a removable white Nitrile seal to minimize dust leakage.
Dust-tight pan covers are available for just about every style of Slipstick conveyor. Covers may be flanged for connection to other equipment, interlocked for access
restriction, and may be clamped and/or hinged for ease of sanitation maintenance. Pan cover sections are designed to be easily accessible by production staff and require no tools or special equipment for access or removal. Covers can be made of stainless steel, plexi-glass or a wide variety of other materials. Access ports and viewports may be specified. Stationary covers may also be employed with external supports.
- Materials of Construction
- Impact liners
- Dual direction
- Product dams
- Textured pans
- Flow Inhibitors
- Non-metallic sections
Based on its many advantages over conventional conveyors, the Slipstick is currently being utilized conveying hundreds of different food products, including:
- Cocktail Sausages
- Cheese Snacks
- Chocolate Chips
- Cocoa Beans
- Corn Based Chips
- Milk Products (dry infant formula)
- Onion Rings
- Pet Food/Treats
- Pork Rinds
- Potato Chips
- Shredded Cheese
- Trail Mix
Request a Quote
Complete our online worksheet to find out how the Slipstick Sanitary can work for you.Find YourCustom Solution
OEM Parts & Service
With over one hundred years of equipment experience, our Parts and Service Department is here to help!Contact OurParts & Service Team
Slipstick Sanitary Product Applications

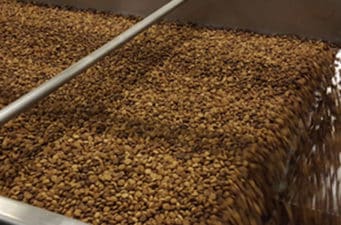

A major pet food manufacturer wanted to replace belt conveyors that feed four packaging lines.
Conveying Pet Treats

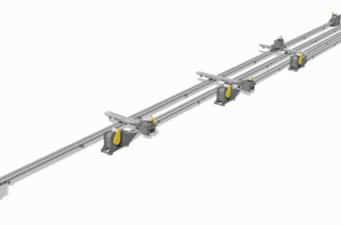

A food service company needed to convey meat crumbles in their processing plant.
Conveying Meat Crumbles

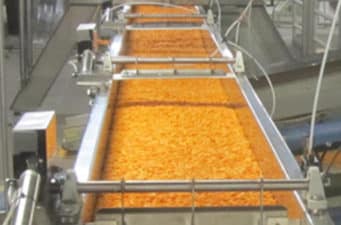

Learn more about these food grade conveyors which must be engineered to the highest food grade standards.
Conveying and Accumulating Snack Crackers

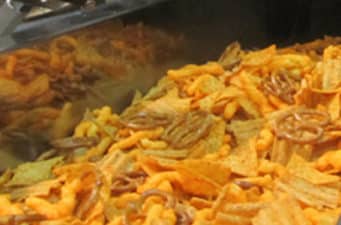

Learn more about the Triple/S solution to reduce product breakage at 9,000 pounds per hour for 24/7.
Conveying Crackers with Little or No Product Loss

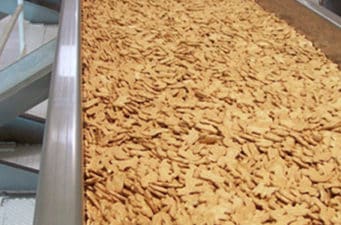

Learn more about the Triple/S solution to reduce product breakage at 2,000 pounds per hour per line.
